Pre-Owned, Item code 13115

CALL BRIAN OR MARTY 708-354-1265

Crating Fee $40.00 and Shipping apply or you can Pick Up in Countryside, IL 60525

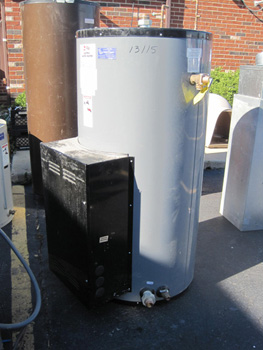

85 GAL. RHEEM ELECTRIC HOT WATER HEATER

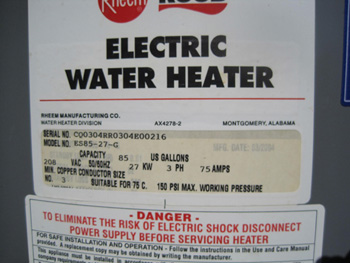

Model # ES85-27G

This Rheem Electric Water Heater is suitable for general commercial
hot water application and is also ideal for point-of-use installations.

A single unit can be used as a booster heater to satisfy the hot water
requirements of commercial dishwashers.

A single temperature storage unit, when installed with a mixing valve,
will supply two temperatures in food service establishments.


Some features/Benefits:

* Efficiency: in accordance with ANSI test procedures

* Safety and construction:
These products are design certified by underwriters laboratories (UL)
CERTIFIED FOR A 150 PSI MAXIMUM WORKING PRESSURE

* Equivalent BTU's 92,129

* Fuse type: the "G" in the model number represents Class G fuses


* Electrical characteristics at 27 Kw:
- No. of Elements: 6
- Element wattage: 4500
- Full load current in Amperes: 75

SURFACE MOUNTED
- No. of T'Stats: 1
- Number of Fuses: 12
- Number of Contractors: 4

IMMERSION THERMOSTATS
- Number of Fuses:12
- No. of T'Stats: 2 (Staged T'Stats)
- KW Step Size: 13.5 (Staged T'Stats)

* Water Temperature Ratings

TANK CAPACITY
- Gallons: 85
- Liters: 322
Thermostat Type
- Surface
Minimum Delivered Temperature
- 120°F
Maximum Delivered Temperature
- 160°F
High Temperature Limit
- 190°F

* Recovery Capacities
(Recovery in U.S. Gallons /Hr. at Various Temperature Rises)

40°F - 279
50°F - 223
60°F - 186
70°F - 160
80°F - 140
90°F - 124
100°F - 112
110°F - 102
120°F - 93
130°F - 86
140°F - 80

208 volts, 3 ph, 75 amps, 50/60 hz, 27Kw

Approx. size: 34 1/2" w, 32" d, 61 1/2" h
Approx. weight: 350 lbs standard, 380 lbs ASME

(disk L3) (L)

ALL SALES ARE FINAL!!!
